KENWOOD TS-590S Service Repair Manual Download

14.95 USD

Factory Service Manual includes schematic diagrams, block diagrams, dis-assembly, adjustment procedures, board layouts, and more.

Includes the following models:

- Kenwood TS-590S (HF/50MHz ALL MODE TRANSCEIVER)


SUMMARY OF CONTENTS:

- GENERAL
- SYSTEM SET-UP
- REALIGNMENT
- CIRCUIT DESCRIPTION
- SEMICONDUCTOR DATA
- DESCRIPTION OF COMPONENTS
- PARTS LIST
- EXPLODED VIEW
- PACKING
- ADJUSTMENT
- PC BOARD
- FINAL UNIT (X45-391X-XX)
- CONTROL UNIT (X53-446X-XX) (A/3)
- CONTROL UNIT (X53-446X-XX) (B,C/3)
- DISPLAY UNIT (X54-3700-00)
- TX-RX UNIT (X57-785X-XX)
- SCHEMATIC DIAGRAM
- BLOCK DIAGRAM
- LEVEL DIAGRAM
- PS-60 (DC Power Supply)
- ARCP-590 (Radio Control Program)
- ARHP-590 (Radio Host Program)
- ARUA-10 (USB Audio Controller)
- SPECIFICATIONS

********************************
ABOUT THIS MANUAL

PAGES: 162
LANGUAGE: English
DOCUMENT ID: B51-8941-00 (N) 283
PUBLICATION YEAR: 2010

Instant Download: Yes
Has bookmarks for easy navigation: Yes
Can be printed: Yes
Windows compatible / Mac compatible

********************************
OUR GUARANTEE

1. Every manual has been reviewed by humans for quality, correct number of pages, and bookmarks.

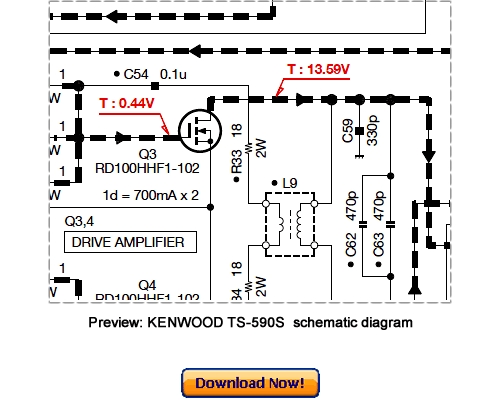

2. The illustration above is a small preview from an actual screenshot of this manual.
