KENWOOD TK-373 G, TK-373G Service Repair Manual Download

14.95 USD

Factory Service Manual includes schematic diagrams, block diagrams, dis-assembly, adjustment procedures, board layouts, and more.

Includes the following models:

- Kenwood TK-373G UHF FM TRANSCEIVER


SUMMARY OF CONTENTS:

- GENERAL
- SYSTEM SET-UP
- OPERATING FEATURES
- REALIGNMENT
- DISASSEMBLY FOR REPAIR
- CIRCUIT DESCRIPTION
- SEMICONDUCTOR DATA
- DESCRIPTION OF COMPONENTS
- PARTS LIST
- EXPLODED VIEW
- PACKING
- ADJUSTMENT
- PC BOARD VIEWS
- SCHEMATIC DIAGRAM
- BLOCK DIAGRAM
- LEVEL DIAGRAM
- KNB-14/KNB-15A (Ni-Cd BATTERY)
- KNB-20N (Ni-MH BATTERY)
- KMC-17/KMC-21 (SPEAKER MICROPHONE)
- OPTIONS
- SPECIFICATIONS

********************************
ABOUT THIS MANUAL

PAGES: 45
LANGUAGE: English
DOCUMENT ID: B51-8618-00 (S) 931
PUBLICATION YEAR: 2002

Instant Download: Yes
Has bookmarks for easy navigation: Yes
Can be printed: Yes
Windows compatible / Mac compatible

********************************
OUR GUARANTEE

1. Every manual has been reviewed by humans for quality, correct number of pages, and bookmarks.

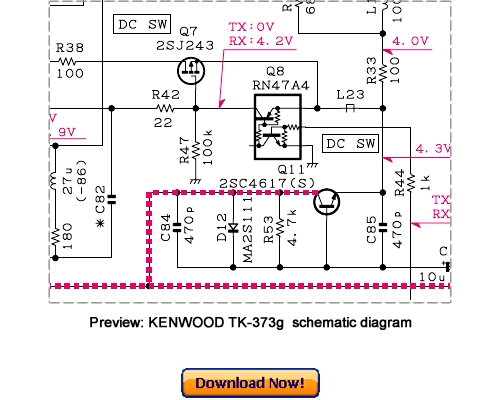

2. The illustration above is a small preview from an actual screenshot of this manual.
